TRIDONIC LED Driver Constant Voltage LC 60W 24V SC SNC2 87501051
31. October 2024
TRIDONIC LED Driver Constant Voltage LC 60W 24V SC SNC2 SP, Single Packaging 87501055
31. October 2024

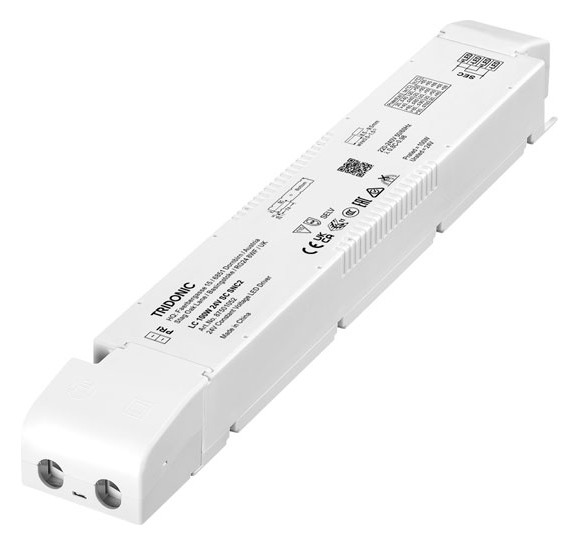

TRIDONIC LED Driver Constant Voltage LC 100W 24V SC SNC2 87501052

SKU: 73-87501052
Datasheet: Download PDF
For further information, please refer to the data sheet!
Compact constant-voltage LED driver with a power consumption of less than 0.5 W at idle, which now makes it possible to connect Tridonic drivers to a dimmer or pushbutton on the output side if the application requires it. Dimmable with external PWM LED dimmer in accordance with ecodesign guidelines.
Weight
0,227 kg
Manufacturer

Tridonic Germany GmbH

Weight

0,227 kg

Product group

LED control gear (EC002710)

Compatible with Apple HomeKit

No

Compatible with Google Assistant

No

Compatible with Amazon Alexa

No

IFTTT support available

No

Execution

dynamic

Without dimming function

No

Housing

Plastic housing

Suitable for constant current

No

Suitable for constant voltage

Yes

Output voltage

24 V

Output current

1.250 – 4.167 mA

Suitable for DC voltage (primary side)

No

Output power

35 – 100 W

Protection class (IP)

IP20

Protection class

III

Length

295 mm

Width

43 mm

Height

30 mm

Country of origin

China (CN)

Commodity code

Transformers without liquid insulation with an output of 1kVA or less (85043180)

REACH Indicator

Yes

Datenblatt
Driver_LC_100W_24V_SC_SNC2_31714-1.pdf
Suitable for outdoor use

No

Dimming 0-10 V

No

Dimming 1-10 V

No

DALI dimming

No

Dimming DSI

No

DMX dimming

No

Dimming potentiometer (device-integrated)

No

Dimming LineSwitch

No

Dimming manufacturer-specific

No

Dimming Mains voltage modulation

No

Dimming phase cut-off

No

Phase control dimming

No

Programmable dimming

No

RF dimming

No

Dimming Sine Wave Reduction

No

Dimming Touch and Dim

No

Dimming Zigbee

No

Dimming with push-button

No
