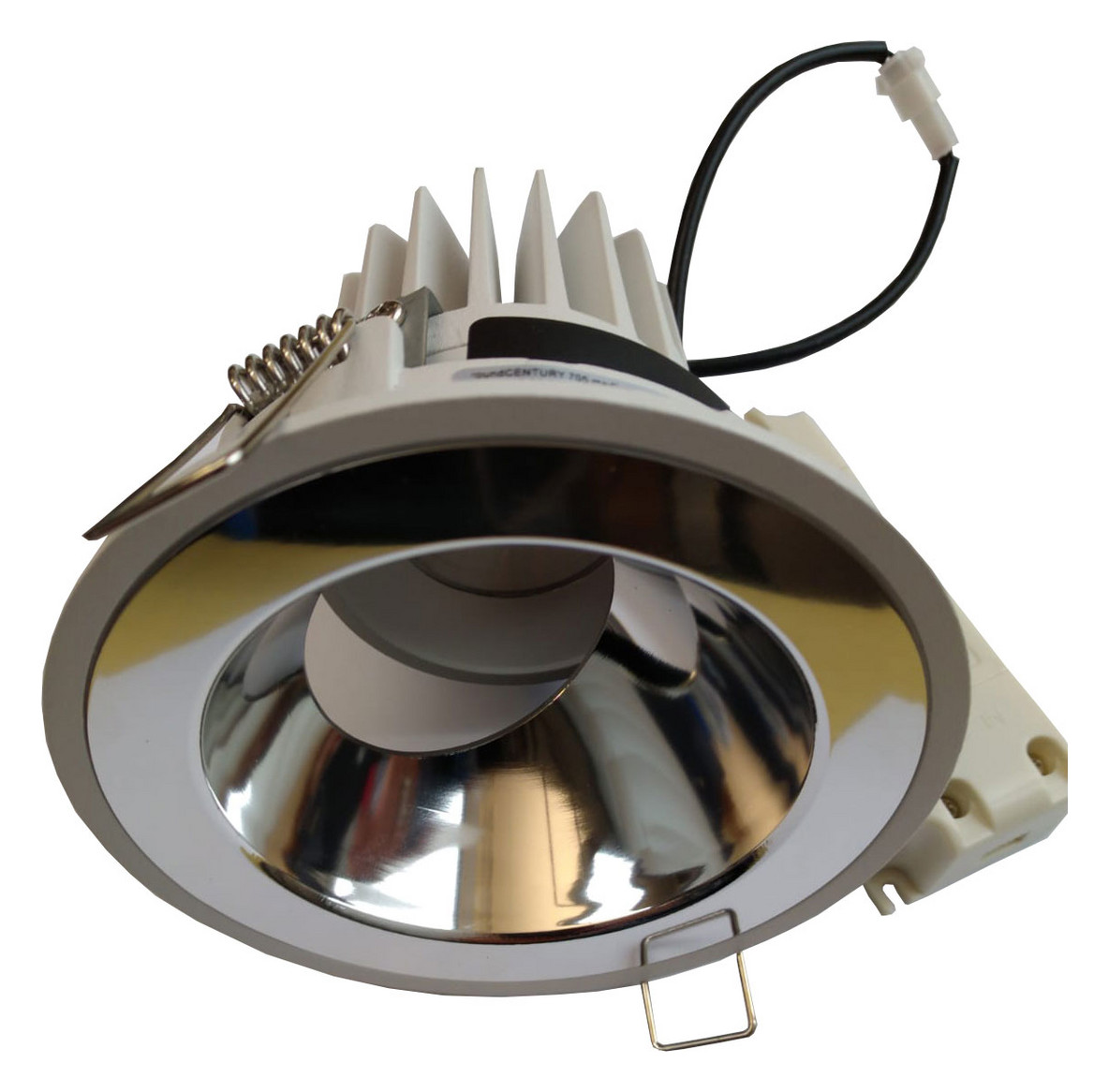

LED recessed wallwasher, roundCENTURY 705M white 15W 36° 3000K CRI80 AA81048.01.91

EU-Energielabel für dieses Produkt
SKU: 733-AA81048.00.91
For further information, please refer to the data sheet!
Wallwash effect for general lighting, up to 3 m ceiling height. Housing made of aluminum. Rotation range 355°. Reflector swivel range 30°. Color tolerance 3 SDCM. Luminous flux decrease after 50,000h L80/B10. Separate, non-dimmable control gear.
Product group

Downlight/spotlight/floodlight (EC001744)

Suitable for wall mounting

No

Replaceable operating device

Yes

Dimming DALI-2

No

Luminous flux maintenance with average service life 50,000 h at 25 °C ambient temperature

80 %

Failure rate with average service life of 50,000 h at 25 °C ambient temperature (tq)

10 %

Constant luminous flux control

No

Adjustable color temperature

No

Adjustable luminous flux

No

Adjustable beam angle

No

Installation diameter

102 mm

IFTTT support available

No

Compatible with Apple HomeKit

No

Compatible with Google Assistant

No

Compatible with Amazon Alexa

No

Suitable for truss mounting

No

Suitable for platform/floor mounting

No

Suitable for busbar mounting

No

Suitable for clamp mounting

No

Suitable for cable system

No

Adjustability

not adjustable

Light source

LED not replaceable

Suitable for number of light sources

1

Version

Without

Material of the housing

Aluminum

Surface protection

powder-coated

Housing color

white

Cover material

Without cover

Brushed surface

No

Voltage type

AC

Nominal voltage

220 – 240 V

Operating device

LED control gear, current-controlled

Without dimming function

Yes

Reflector

high gloss

Light distributor

Reflector

Light distribution

asymmetrical

Beam angle

medium beam 21-40°

Light emission

direct

Protection class (IP)

IP20

Protection class

II

Rated ambient temperature according to IEC 62722-2-1

0 °C

Max. System performance

15 W

Light color

white

Color temperature

3.000 K

Color rendering index CRI

80-89

Luminous flux

1.260 lm

Luminous intensity

cd

Height/depth

145 mm

Outer diameter

115 mm

Installation height/depth

150 mm

Type of wiring

Conclusion

Number of poles

2

Conductor cross-section

0,75 mm²

Connection type

Screw terminal

Luminaire luminous efficacy

84 lm/W

Glow wire test according to IEC 60695-2-11

Without

Photobiological safety according to EN 62471

RG1

Color consistency (McAdam ellipse)

SDCM3

Reflector color

silver

Suitable for recessed mounting

Yes

Suitable for ceiling mounting

Yes

With illuminant

Yes

With control gear

Yes

CE mark

Yes

Suitable for surface mounting

No

Suitable for pendant suspension

No

With motion detector

No

With light sensor

No

Dimming 0-10 V

No

Dimming 1-10 V

No

DALI dimming

No

DMX dimming

No

Dimming DSI

No

Dimming potentiometer (device-integrated)

No

Dimming LineSwitch

No

Dimming manufacturer-specific

No

Dimming Mains voltage modulation

No

Dimming phase cut-off

No

Phase control dimming

No

Programmable dimming

No

RF dimming

No

Dimming Sine Wave Reduction

No

Dimming Touch and Dim

No

Dimming Zigbee

No

Dimming with push-button

No

Luminaire with limited surface temperature "D mark" according to EN 60598-2-24

No

Integrated emergency power supply

No

Suitable for VDU workstations according to EN 12464-1

No

Covering the luminaire with thermal insulation material possible

No

Operation via Bluetooth

No
