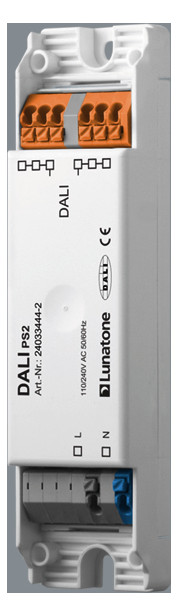

DALI PS2 for FFECT Program AA1100168

SKU: 752-AA1100168
Datasheet: Download PDF
For further information, please refer to the data sheet!
DALI PS, power supply for the FFECT DALI DT8 circuit (one piece per circuit), installation instructions for low voltage (DALI is not SELV), ceiling recess, supply voltage 4W, output DALI, max. output current 250mA, -20°C - +55°C, IP20, connection cable max. 2.5mm², L120mm x W33mm x H22mm.
Manufacturer

Arclite Lichtvertrieb GmbH

Product group

Control unit for lights (EC002924)

Compatible with Apple HomeKit

No

Compatible with Google Assistant

No

Compatible with Amazon Alexa

No

IFTTT support available

No

Execution

Static

Type of control

DALI

Housing

Plastic housing

Structure

Yes

Installation

No

DIN rail mounting

No

Input voltage

230 V

Max. Output current

0,22 A

Protection class (IP)

IP20

Length

120 mm

Width

33,00 mm

Height

22,00 mm

Programmable

Yes

Commodity code

Electrical machinery, apparatus and appliances having their own function, not specified or included elsewhere in Chapter 85 (85437090)
