LED Aufbauleuchte linear, lineCENTURY 2 S weiss 8W 180° 3000K CRI80 AA81696.00.91

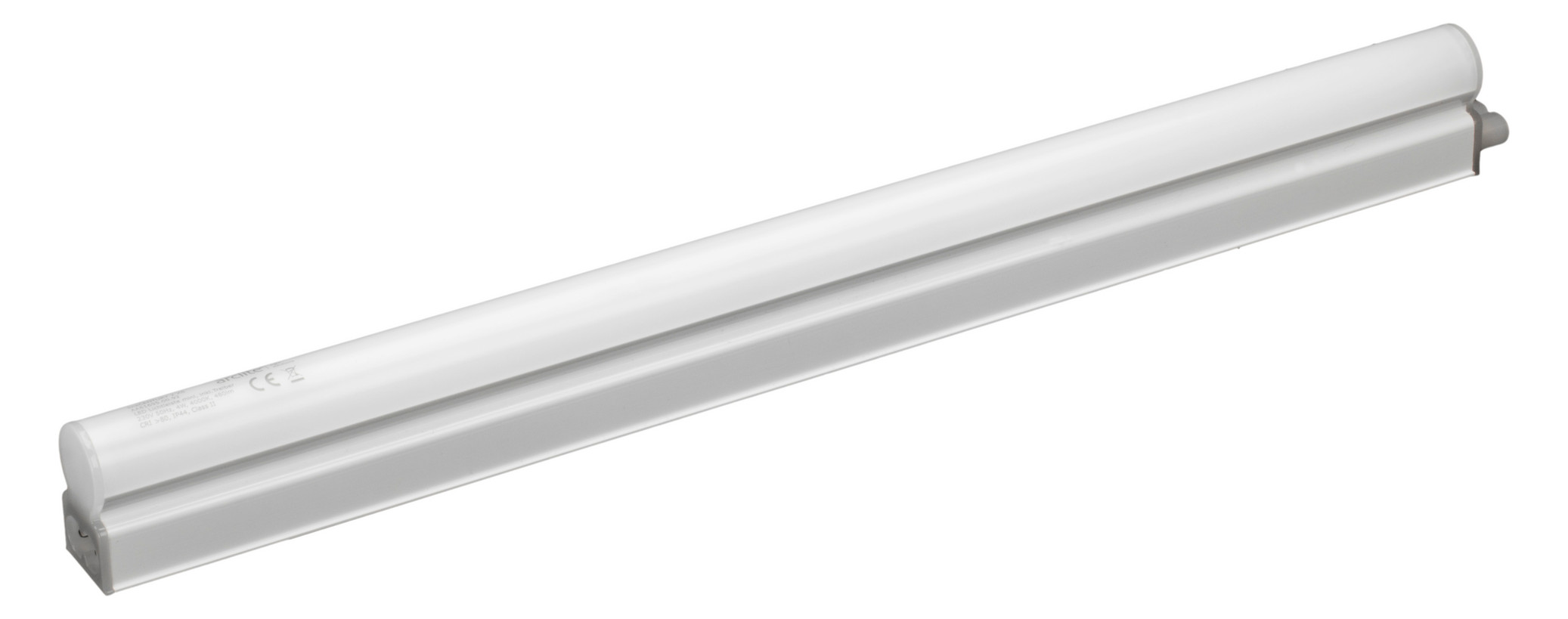

LED surface-mounted luminaire linear, lineCENTURY 2 S white 8W 180° 3000K CRI80 AA81696.00.91

SKU: 786-AA81696.00.91

Datasheet: Download PDF

For further information, please refer to the data sheet!

Compact and unobtrusive LED light strip for shelves, base cabinets, backlighting and general lighting in various lengths. Polycarbonate housing. Mounting accessories included: 30 cm extension cable ; 180cm power cord; Mounting bracket. Small size. Integrated, non-dimmable control gear. Net 850lm. 3-year warranty.

Length

595 mm

Width

20,00 mm

Height

36 mm

Volume

471,24 cm³ (0,47 l)

Weight

0,124 kg

Product group

Ceiling/wall light (EC002892)

Housing color

white

Max. System performance

Color temperature

3.000,00 K

Beam angle

Extremely wide beam >80°

Protection class (IP)

IP44

Without dimming function

Yes

Height/depth

36,00 mm

Suitable for number of light sources

Material of the housing

Plastic

Cover material

Plastic opal

Design of the grid

Without

Voltage type

Nominal voltage

Operating device

LED control gear, current-controlled

Light distributor

Diffuser lens/optics/panel

Light distribution

symmetrical

Light emission

direct

Color rendering index CRI

80-89

Protection class

Rated ambient temperature according to IEC 62722-2-1

°C

Glow wire test according to IEC 60695-2-11

Without

Luminaire luminous efficacy

106 lm/W

Rated luminous flux according to IEC 62722-2-1

850 lm

Light color

white

Light source

LED not replaceable

Type of wiring

with through-wiring

Number of poles

Connection type

–

Suitable for wall mounting

Yes

Suitable for ceiling mounting

Yes

Suitable for surface mounting

Yes

With illuminant

Yes

With control gear

Yes

Suitable for strip light configuration

Yes

CE mark

Yes

Datenblatt

declaration_rohs_md36.pdf
