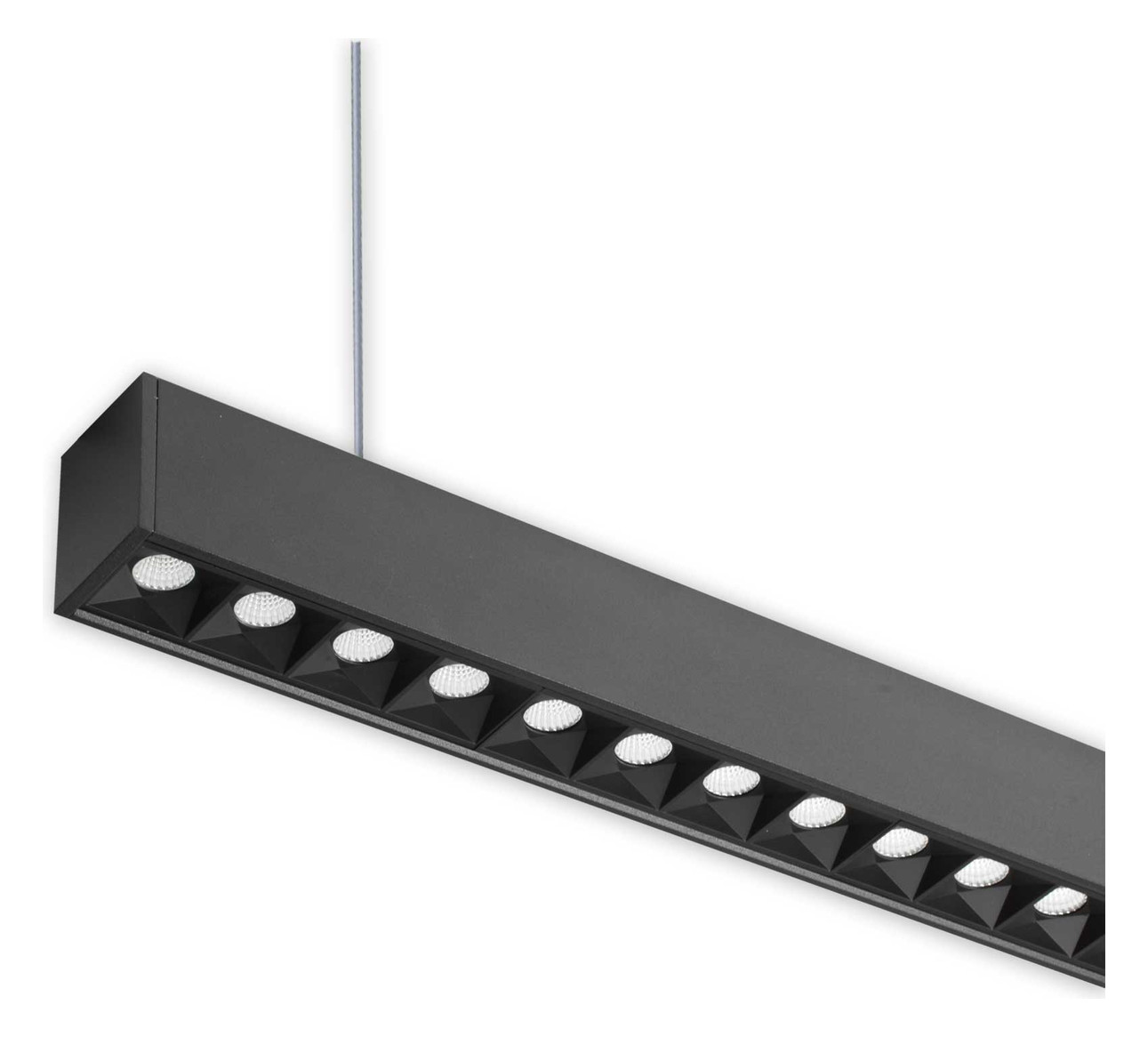

penCENTURY 1200 BAP - Pendant Lights Black 50W 50° 4000K CRI80 AA81768.02.92

SKU: 832-AA81768.02.92
Datasheet: Download PDF
For further information, please refer to the data sheet!
High-quality linear LED pendant luminaire for computer workstations, with precise optics. Housing made of extruded aluminum, powder-coated. suitable for continuous rooflight installations. Mounting accessories included. Direct/indirect illumination with special lens covers. 3-year warranty. Micro-reflector design, UGR < 6. Color tolerance 3 SDCM. Luminous flux decrease after 50,000h L80/B10. Integrated control gear. 5-year warranty.
Family

penCENTURY 1200 BAP

Weight

3 kg

Product group

Pendant light (EC001743)

Replaceable operating device

Yes

Dimming DALI-2

No

Luminous flux maintenance with average service life 50,000 h at 25 °C ambient temperature

80 %

Failure rate with average service life of 50,000 h at 25 °C ambient temperature (tq)

10 %

Constant luminous flux control

No

Adjustable color temperature

No

Adjustable luminous flux

No

Adjustable beam angle

No

Compatible with Apple HomeKit

No

Compatible with Google Assistant

No

Compatible with Amazon Alexa

No

IFTTT support available

No

Light source

LED replaceable

Version

Without

Material of the housing

Aluminum

Housing color

black

Cover material

Without cover

Design of the grid

other

Voltage type

AC

Nominal voltage

220 – 240 V

Operating device

LED control gear, current-controlled

Without dimming function

Yes

Light distributor

Reflector

Reflector

other

Light distribution

symmetrical

Color consistency (McAdam ellipse)

SDCM3

Direct/indirect components separately adjustable

No

Protection class (IP)

IP20

Protection class

I

Glow wire test according to IEC 60695-2-11

Without

Max. System performance

50,00 W

Light color

white

Luminaire luminous efficacy

121 lm/W

Color temperature

4.000,00 K

Color rendering index CRI

80-89

Width

38,00 mm

Height/depth

66,00 mm

Length

1.175 mm

With suspension

Yes

Pendulum length

3.000 mm

Type of wiring

Conclusion

Number of poles

3

Connection type

Plug-in terminal

Glare limitation (UGR)

6

Suitable for strip light configuration

Yes

Suitable for VDU workstations according to EN 12464-1

Yes

With illuminant

Yes

With control gear

Yes

Country of origin

China (CN)

Statistische Warennummer

Lüster und andere elektrische Decken- und Wandleuchten, mit LED-Lichtquelle, aus anderen Stoffen als Kunststoff, keramischen Stoffen oder Glas (94051190)

REACH Indicator

Yes

Datenblatt
AA81768.02.92.pdfdeclaration_rohs_md49.pdfarclite_reach_selbstverpflichtungserklaerung_24-07-30_md05.pdfmontageanleitung_pencentury1200bap_23_md14.pdfausschreibungstext_aa81768_02_92.txt
