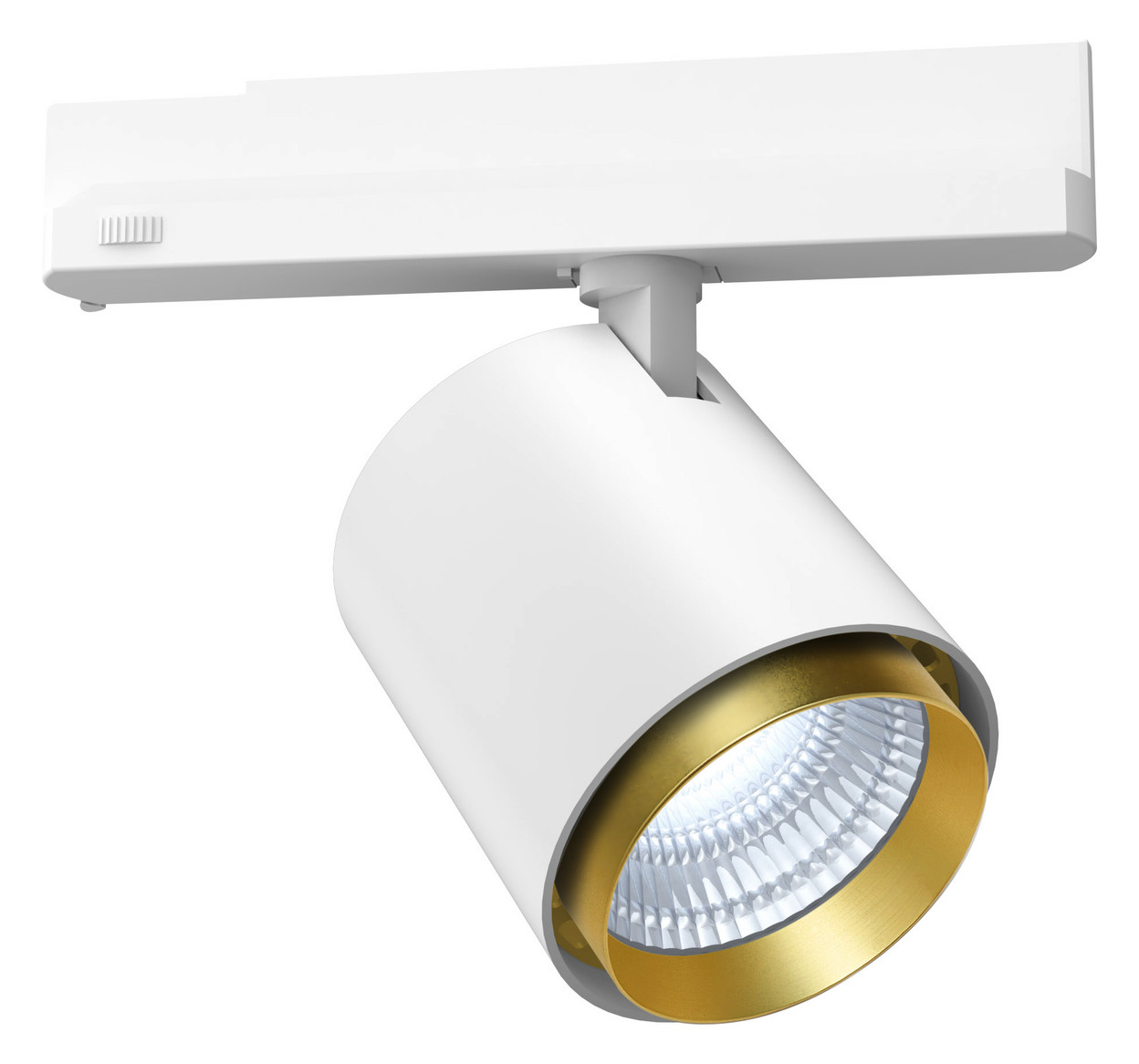

Odion XS - DALI Track Spotlight Swivel White/Gold 32W 37° 3000K CRI97 35040361E202

SKU: 847-35040361E202
Datasheet: Download PDF
For further information, please refer to the data sheet!
Elegant LED track beam with integrated control gear in the adapter, not visible after installation. LED strip with high efficiency. Minimal glare due to optimal lighting technology. Rotation range 355°. Swivel range 90°. Color tolerance 3 SDCM. Luminous flux drop L90/B10 after more than 60,000h at ta 25°C. "in-trac" 3-phase adapter with integrated control gear, flicker-free. 7-year guarantee.
Family

Odion XS

Weight

0,84 kg

Product group

Downlight/spotlight/floodlight (EC001744)

Suitable for wall mounting

No

Replaceable operating device

Yes

Dimming DALI-2

No

Luminous flux maintenance with average service life 50,000 h at 25 °C ambient temperature

90 %

Failure rate with average service life of 50,000 h at 25 °C ambient temperature (tq)

10 %

Constant luminous flux control

No

Adjustable color temperature

No

Adjustable luminous flux

Steps

Adjustable beam angle

No

IFTTT support available

No

Compatible with Apple HomeKit

No

Compatible with Google Assistant

No

Compatible with Amazon Alexa

No

Suitable for truss mounting

No

Suitable for platform/floor mounting

No

Suitable for busbar mounting

Yes

Suitable for clamp mounting

No

Suitable for cable system

No

Adjustability

Rotatable and swiveling

Light source

LED replaceable

Suitable for number of light sources

1

Version

Without

Material of the housing

Aluminum

Surface protection

powder-coated

Housing color

multicolored

Cover material

Transparent glass

Brushed surface

No

Voltage type

AC

Nominal voltage

220 – 240 V

Operating device

LED control gear, current-controlled

Without dimming function

No

Reflector

high gloss

Light distributor

Reflector

Light distribution

symmetrical

Beam angle

medium beam 21-40°

Protection class (IP)

IP20

Impact resistance

IK03

Protection class

II

Max. System performance

32,00 W

Light color

white

Color temperature

3.000,00 K

Color rendering index CRI

90-100

Luminous flux

2.150,00 lm

Power factor

0,97

Width

253,00 mm

Height/depth

150,00 mm

Outer diameter

100 mm

Type of wiring

Conclusion

Number of poles

5

Connection type

other

Luminaire luminous efficacy

67 lm/W

Glow wire test according to IEC 60695-2-11

Without

Photobiological safety according to EN 62471

RG1

Color consistency (McAdam ellipse)

SDCM3

Glare limitation (UGR)

19

Suitable for ceiling mounting

Yes

With illuminant

Yes

With control gear

Yes

DALI dimming

Yes

Suitable for VDU workstations according to EN 12464-1

Yes

Country of origin

Netherlands (NL)

Statistische Warennummer

Lüster und andere elektrische Decken- und Wandleuchten, mit LED-Lichtquelle, aus anderen Stoffen als Kunststoff, keramischen Stoffen oder Glas (94051190)

REACH Indicator

Yes
