Sensor Vector CL 100 HV - Surface mounted luminaires rigid white/gold 15W 80° 4000K CRI83 7B2S03615F02
31. October 2024
Sensor Vector CL 100 HV - Surface mounted luminaires rigid white/black 15W 80° 4000K CRI83 7B2S03625F02
31. October 2024

Sensor Vector CL 100 HV - Surface mounted luminaires rigid white/black 15W 80° 3000K CRI83 7B2S03625D02

SKU: 847-7B2S03625D02
Datasheet: Download PDF
For further information, please refer to the data sheet!

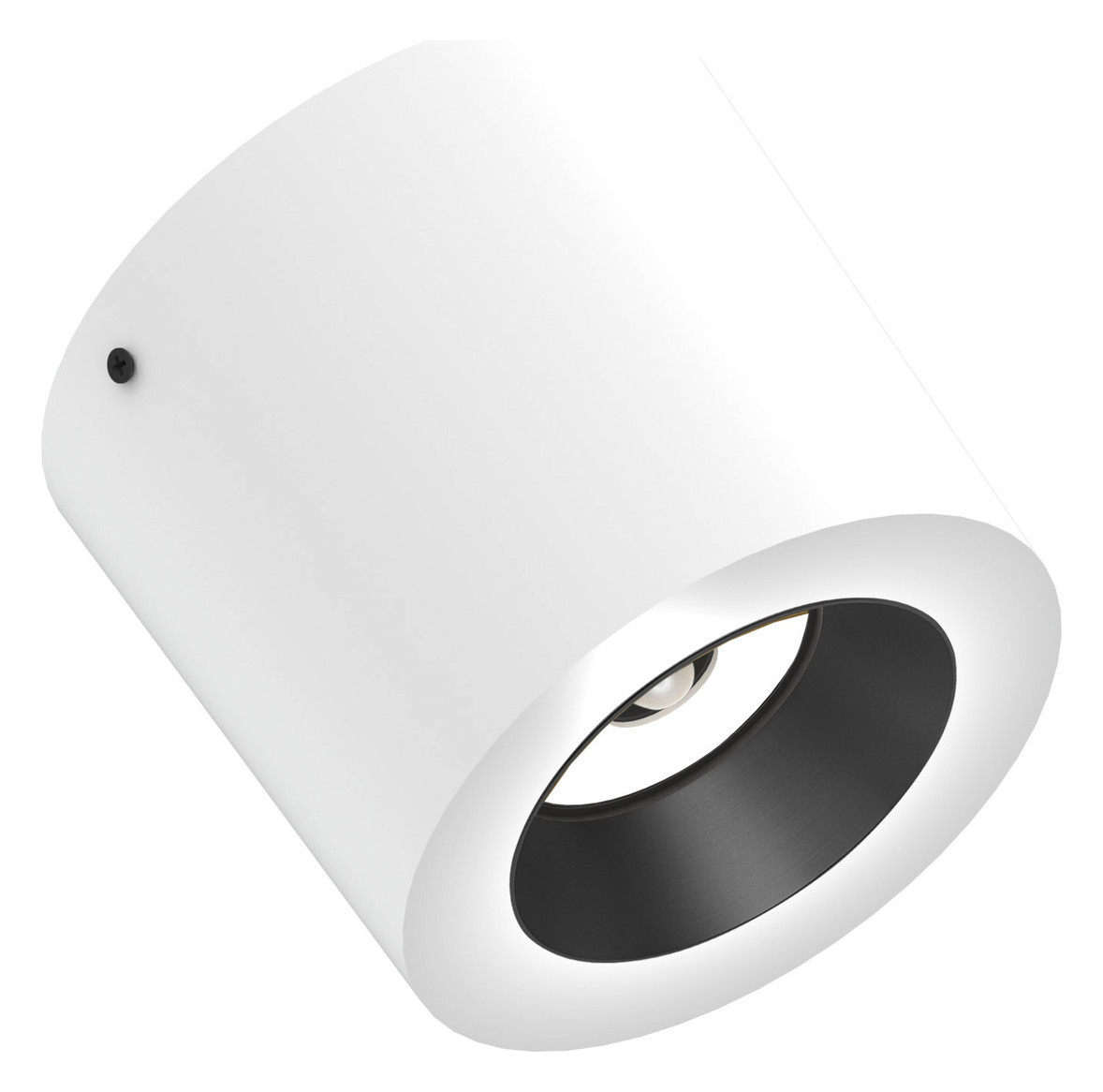

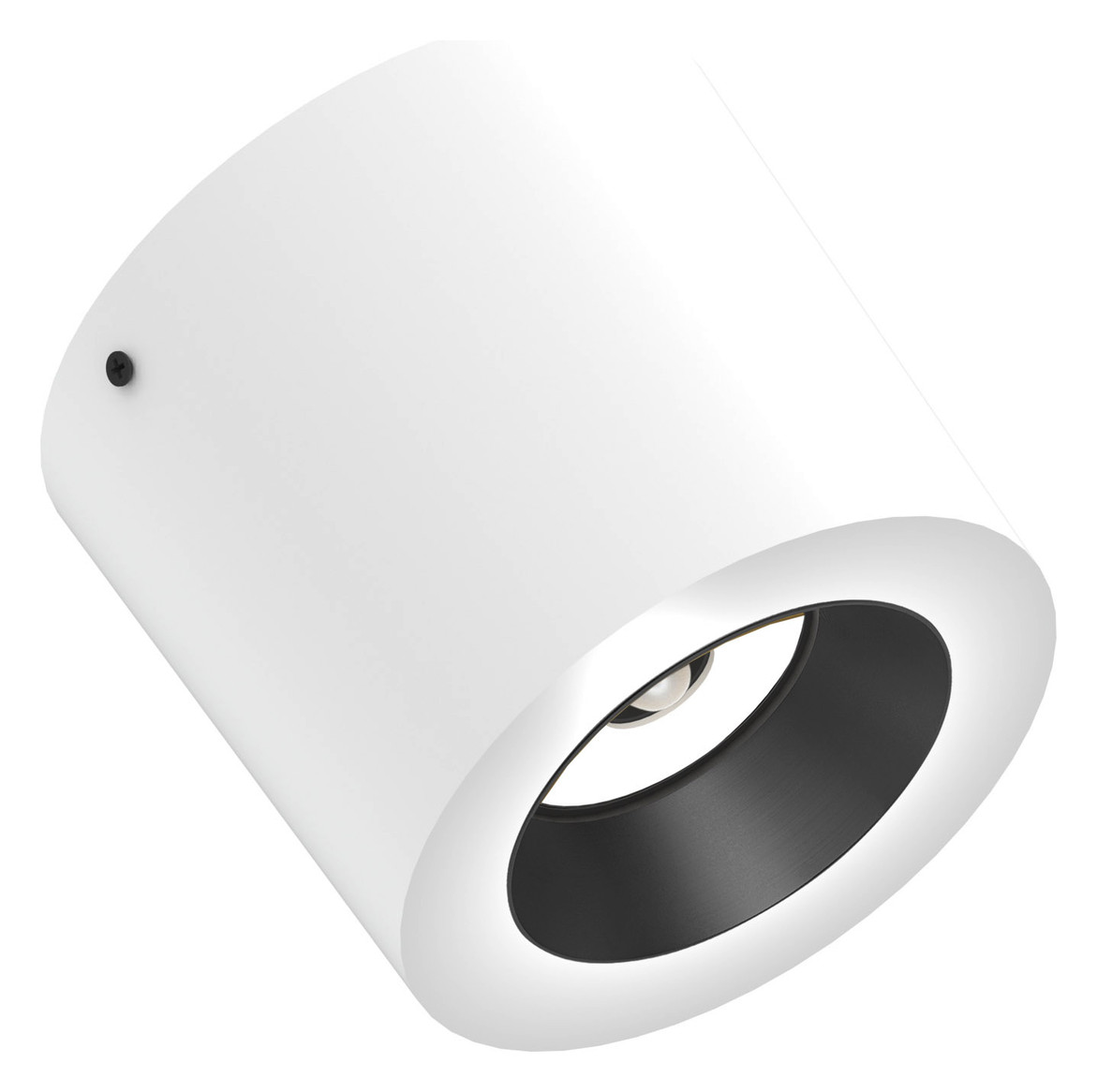

LED surface-mounted ceiling light for decorative lighting. Motion sensor, light remains activated for 4min. 8 combinations for housing and reflector ring. Anti-glare illumination thanks to recessed optics. Uniform illumination through lens, reflector or diffuser. Color tolerance 3 SDCM. Luminous flux decrease after 70,000h L80/B50. 220-240V mains voltage - control gear not necessary. 7-year guarantee. Net 800lm
Family

Sensor Vector CL 100 HV

Weight

0,415 kg

Product group

Downlight/spotlight/floodlight (EC001744)

Suitable for wall mounting

Yes

Replaceable operating device

No

Dimming DALI-2

No

Luminous flux maintenance with average service life 50,000 h at 25 °C ambient temperature

80 %

Failure rate with average service life of 50,000 h at 25 °C ambient temperature (tq)

50 %

Constant luminous flux control

No

Adjustable color temperature

No

Adjustable luminous flux

No

Adjustable beam angle

No

IFTTT support available

No

Compatible with Apple HomeKit

No

Compatible with Google Assistant

No

Compatible with Amazon Alexa

No

Suitable for truss mounting

No

Suitable for platform/floor mounting

No

Suitable for busbar mounting

No

Suitable for clamp mounting

No

Suitable for cable system

No

Adjustability

not adjustable

Light source

LED replaceable

Suitable for number of light sources

1

Version

Without

Material of the housing

Aluminum

Surface protection

powder-coated

Housing color

multicolored

Cover material

Plastic opal

Brushed surface

No

Voltage type

AC

Nominal voltage

220 – 240 V

Operating device

not required

Without dimming function

Yes

Reflector

Without

Light distribution

symmetrical

Beam angle

wide beam 41-80°

Rated service life L70/B50 at 25 °C

54.000 h

Protection class (IP)

IP20

Impact resistance

IK03

Protection class

I

Max. System performance

15,00 W

Light color

white

Color temperature

3.000,00 K

Color rendering index CRI

80-89

Luminous flux

800,00 lm

Power factor

0,99

Height/depth

92,00 mm

Outer diameter

103 mm

Type of wiring

Conclusion

Number of poles

2

Connection type

Plug-in terminal

Luminaire luminous efficacy

53 lm/W

Glow wire test according to IEC 60695-2-11

Without

Photobiological safety according to EN 62471

RG1

Color consistency (McAdam ellipse)

SDCM3

Glare limitation (UGR)

24

Suitable for surface mounting

Yes

Suitable for ceiling mounting

Yes

With motion detector

Yes

With illuminant

Yes

Country of origin

Netherlands (NL)

Statistische Warennummer

Lüster und andere elektrische Decken- und Wandleuchten, mit LED-Lichtquelle, aus anderen Stoffen als Kunststoff, keramischen Stoffen oder Glas (94051190)

REACH Indicator

Yes

Datenblatt
7B2S03625D02.pdfdeclaration_rohs_il_md49.pdfdeclaration_ce_il_2022_md52.pdfilluxtron_reach_declaration_md05.pdfausschreibungstext_7b2s03625d02.txt
