roundCENTURY 75 - Round recessed luminaires swivel white 12W 36° 3000K CRI90 AA81039.00.91
31. October 2024
roundCENTURY 75 - Round recessed luminaires swivel black 12W 36° 4000K CRI90 AA81039.02.92
31. October 2024

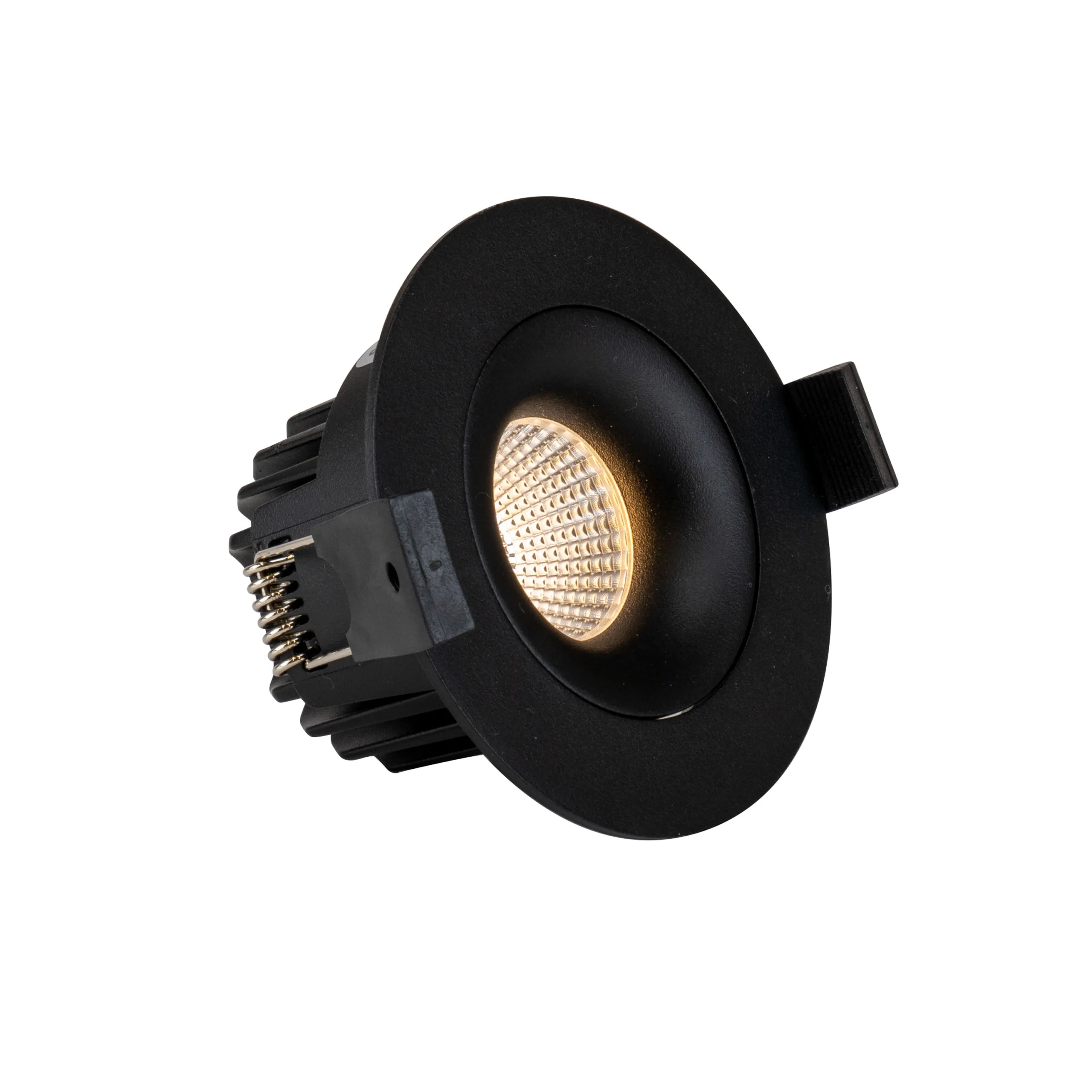

roundCENTURY 75 - Round recessed luminaires swivel black 12W 36° 3000K CRI90 AA81039.02.91

SKU: 854-AA81039.02.91
Datasheet: Download PDF
For further information, please refer to the data sheet!
Small, universal LED recessed luminaire for retail and architecture. Minimal glare due to optimal lighting technology. Die-cast aluminum housing. Swivel range 30°. Color tolerance < 3 SDCM. Luminous flux decrease L80/B10 after 100,000h at Ta 25°C. Separate control gear dimmable by means of a trailing edge, incl. quick connector. 5-year warranty.
Family

roundCENTURY 75

Weight

0,32 kg

Product group

Downlight/spotlight/floodlight (EC001744)

Suitable for wall mounting

No

Replaceable operating device

Yes

Dimming DALI-2

No

Luminous flux maintenance with average service life 50,000 h at 25 °C ambient temperature

80 %

Failure rate with average service life of 50,000 h at 25 °C ambient temperature (tq)

20 %

Failure rate with average service life of 100,000 h at 25 °C ambient temperature (tq)

10 %

Constant luminous flux control

No

Adjustable color temperature

No

Adjustable luminous flux

No

Adjustable beam angle

No

Stroboscopic effect value SVM

0,4

Installation diameter

68 – 75 mm

Max. Number of lights Circuit breaker C16

118

IFTTT support available

No

Compatible with Apple HomeKit

No

Compatible with Google Assistant

No

Compatible with Amazon Alexa

No

Suitable for truss mounting

No

Suitable for platform/floor mounting

No

Suitable for busbar mounting

No

Suitable for clamp mounting

No

Suitable for cable system

No

Adjustability

pivotable

Light source

LED not replaceable

Suitable for number of light sources

1

Version

Without

Material of the housing

Aluminum

Surface protection

powder-coated

Housing color

black

Cover material

Transparent glass

Brushed surface

No

Voltage type

AC

Nominal voltage

220 – 240 V

Operating device

LED control gear, current-controlled

Without dimming function

No

Reflector

high gloss

Light distributor

Reflector

Light distribution

symmetrical

Beam angle

medium beam 21-40°

Protection class (IP)

IP44

Protection class

II

Max. System performance

12,00 W

Light color

white

Color temperature

3.000,00 K

Color rendering index CRI

90-100

Luminous flux

1.000,00 lm

Power factor

0,97

Height/depth

70,00 mm

Outer diameter

85 mm

Installation height/depth

70 mm

Type of wiring

Suitable for through-wiring

Number of poles

3

Connectable conductor cross-section

0,75 – 2,5 mm²

Connection type

Plug-in terminal

Luminaire luminous efficacy

83 lm/W

Glow wire test according to IEC 60695-2-11

Without

Photobiological safety according to EN 62471

RG1

Color consistency (McAdam ellipse)

SDCM3

Reflector color

silver

Suitable for recessed mounting

Yes

Suitable for ceiling mounting

Yes

With illuminant

Yes

With control gear

Yes

Dimming phase cut-off

Yes

Country of origin

Norway (NO)

Statistische Warennummer

Lüster und andere elektrische Decken- und Wandleuchten, mit LED-Lichtquelle, aus anderen Stoffen als Kunststoff, keramischen Stoffen oder Glas (94051190)

REACH Indicator

Yes

Datenblatt
AA81039.02.91.pdfdeclaration_rohs_md49.pdfarclite_reach_selbstverpflichtungserklaerung_24-07-30_md05.pdfausschreibungstext_aa81039_02_91.txt
