squareCENTURY 625 BAP backlit - Panels white 33W 90° 3000K/4000K/6500K CRI80 AB81570.00.68

EU-Energielabel für dieses Produkt
SKU: 873-AB81570.00.68
Datasheet: Download PDF
For further information, please refer to the data sheet!
High-quality and inexpensive LED backlight flat panel for computer workstations. Suitable for insertion, recessed, surface-mounted and pendant mounting. Suitable for grid ceilings module 625x625. Replacement for T5/T8 recessed luminaire modules. Anti-glare microprism cover UGR < 19. Color tolerance 4 SDCM. Luminous flux decrease after 55,000h L80/B10. Separate control gear with DIP switch current adjustment. Net 4015lm at 4000K. 5 years warranty.
Weight
1,75 kg
Family

squareCENTURY 625 BAP backlit

Weight

1,75 kg

Product group

Ceiling/wall light (EC002892)

Replaceable operating device

Yes

Dimming DALI-2

No

Luminous flux maintenance with average service life 50,000 h at 25 °C ambient temperature

80 %

Failure rate with average service life of 50,000 h at 25 °C ambient temperature (tq)

10 %

Max. Number of lights Circuit breaker C16

50

Stroboscopic effect value SVM

0,4

Constant luminous flux control

No

Adjustable color temperature

Steps

Adjustable luminous flux

Steps

Adjustable beam angle

No

Compatible with Apple HomeKit

No

Compatible with Google Assistant

No

Compatible with Amazon Alexa

No

IFTTT support available

No

Housing color

white

Max. System performance

33 W

Color temperature

3.000 – 6.500 K

Beam angle

Extremely wide beam >80°

Protection class (IP)

IP20

Without dimming function

Yes

Width

620 mm

Height/depth

30 mm

Length

620 mm

Surface protection housing

powder-coated

Material of the housing

other

Cover material

Structured plastic

Design of the grid

Without

Voltage type

AC

Nominal voltage

220 – 240 V

Operating device

LED control gear, current-controlled

Light distributor

Diffuser lens/optics/panel

Light distribution

symmetrical

Color consistency (McAdam ellipse)

SDCM4

Color rendering index CRI

80-89

Impact resistance

IK03

Protection class

III

Glow wire test according to IEC 60695-2-11

Without

Luminaire luminous efficacy

122 lm/W

Light color

white

Light source

LED not replaceable

Power factor

0,89

Type of wiring

Conclusion

Number of poles

2

Connection type

Plug-in terminal

Glare limitation (UGR)

19

Suitable for wall mounting

No

Suitable for pendant suspension

Yes

Suitable for ceiling mounting

Yes

Suitable for recessed mounting

Yes

Suitable for surface mounting

Yes

With illuminant

Yes

With control gear

Yes

Suitable for VDU workstations according to EN 12464-1

Yes

Country of origin

China (CN)

Statistische Warennummer

Lüster und andere elektrische Decken- und Wandleuchten, mit LED-Lichtquelle, aus anderen Stoffen als Kunststoff, keramischen Stoffen oder Glas (94051190)

REACH Indicator

Yes

Datenblatt
AB81570.00.68.pdfdeclaration_rohs_md49-875.pdfarclite_reach_selbstverpflichtungserklaerung_24-07-30_md05-1532.pdfmontageanleitung_sqcentury_625_backlit_ab_290922_md14.pdfausschreibungstext_ab81570_00_68.txt
Suitable for strip light configuration

No

Dimming 0-10 V

No

Dimming 1-10 V

No

DALI dimming

No

DMX dimming

No

Dimming DSI

No

Dimming potentiometer (device-integrated)

No

Dimming LineSwitch

No

Dimming manufacturer-specific

No

Dimming Mains voltage modulation

No

Dimming phase cut-off

No

Phase control dimming

No

Programmable dimming

No

RF dimming

No

Dimming Sine Wave Reduction

No

Dimming Touch and Dim

No

Dimming Zigbee

No

Dimming with push-button

No

Luminaire with limited surface temperature "D mark" according to EN 60598-2-24

No

Suitable for emergency lighting

No

Integrated emergency power supply

No

With motion detector

No

With light sensor

No

Covering the luminaire with thermal insulation material possible

No

Mit Luftschlitzen

No

Operation via Bluetooth

No

Kompatibel mit Casambi

No

Erfüllt min. EIA Lebensdauerkriterium L90 (bei 50.000 h bei tq = 25 °C)

No

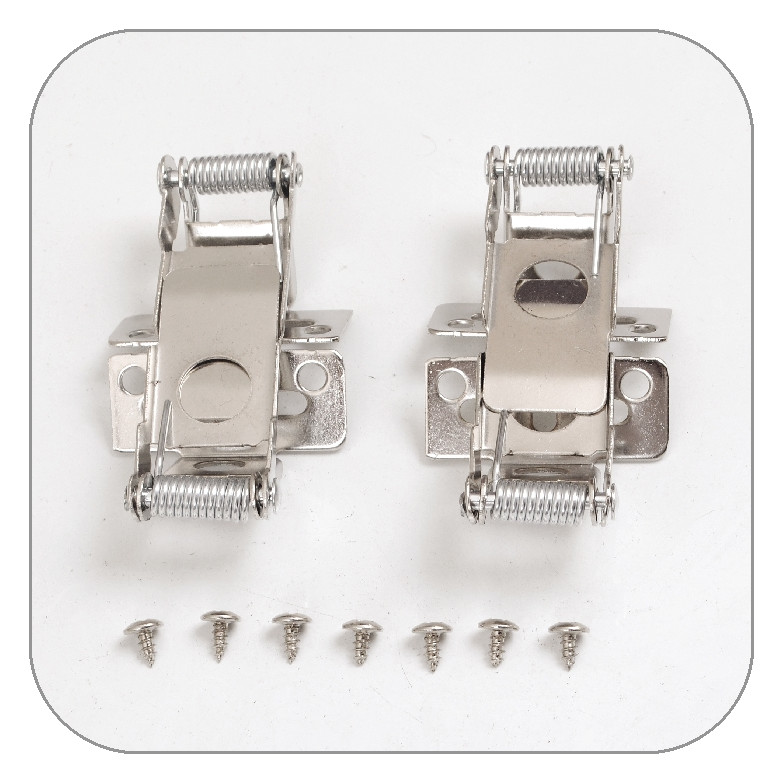

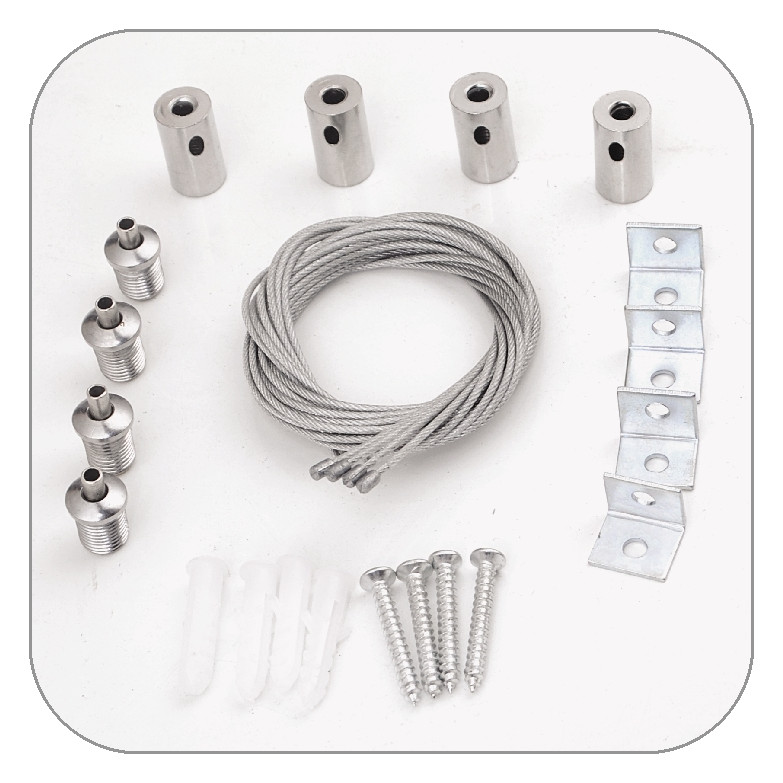

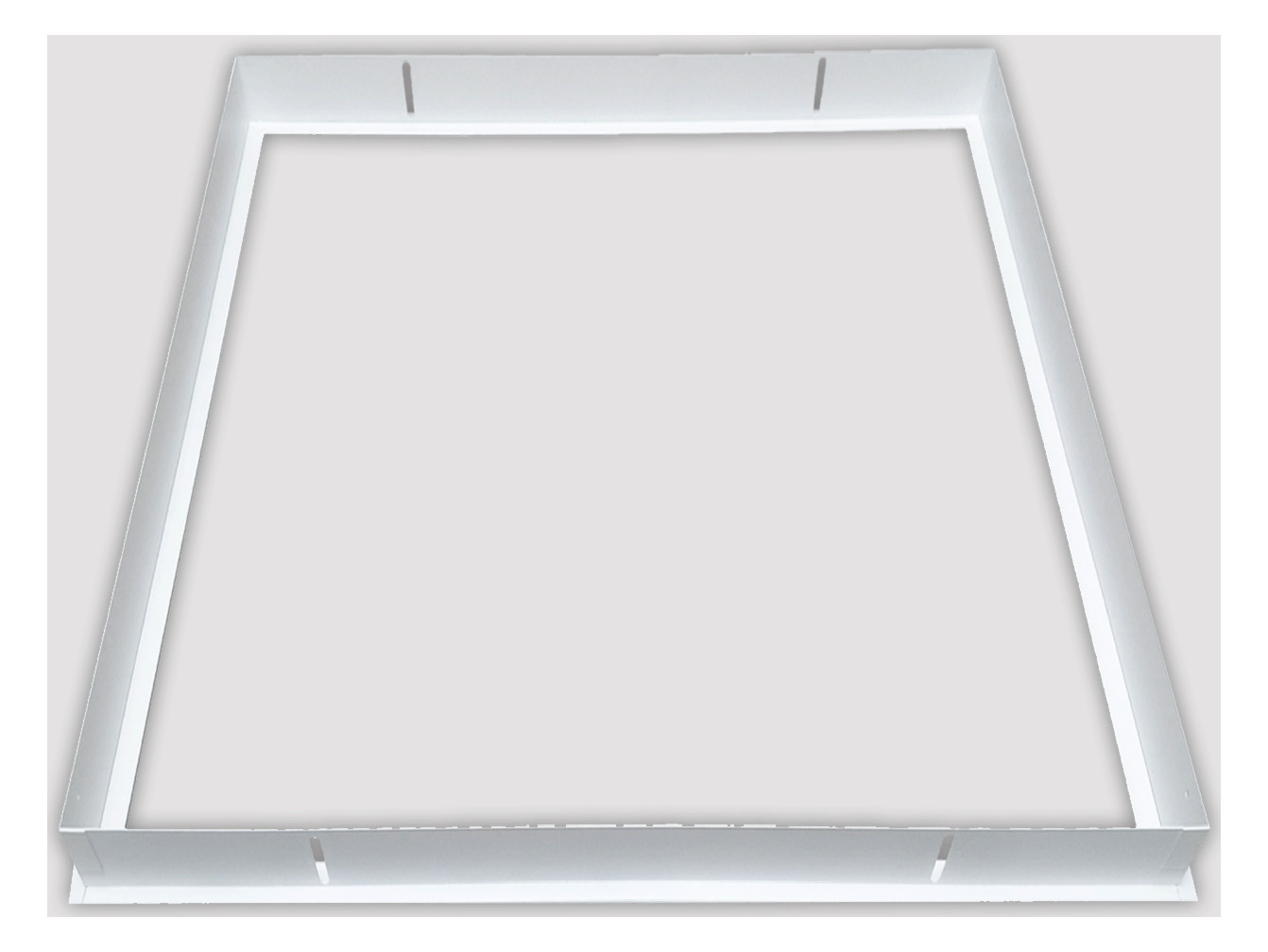

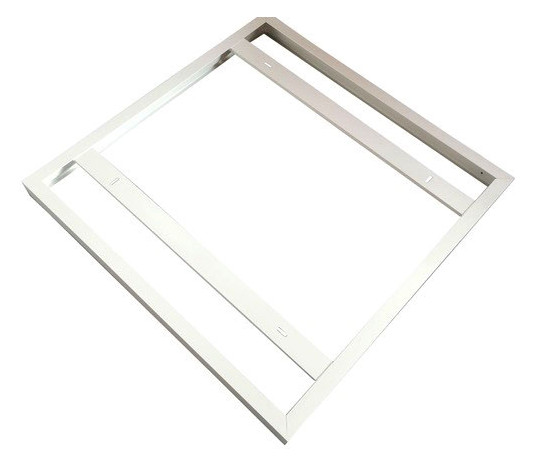

Matching accessories for this product
