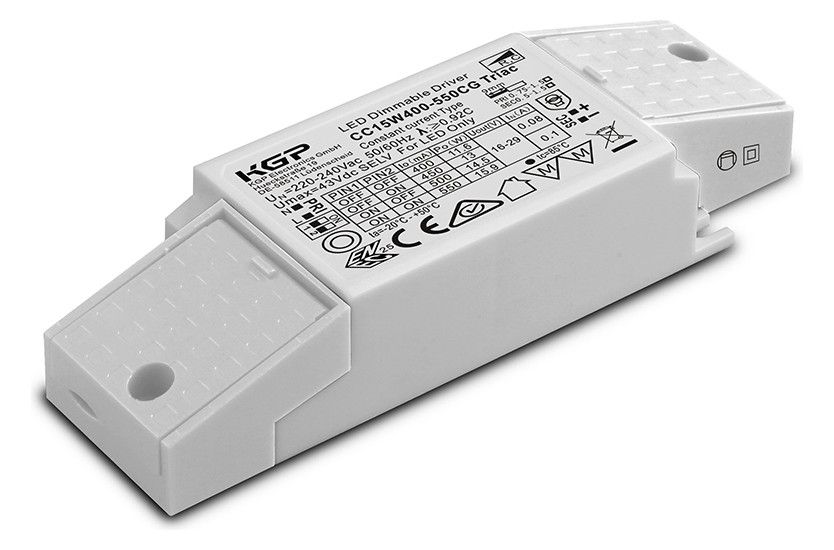

KGP LED Driver Constant Current 220-240V, 50-60Hz, 400-550mA, Dimmable,TRIAC, IP20 CC15W400-550CG Triac

SKU: 873-CC15W400-550CG Triac
Datasheet: Download PDF
For further information, please refer to the data sheet!
Constant Current LED Driver, Triac Dimmable, Phase Input/Cut, Output Current Adjustable via DIP SWITCH, Output Power 6, 4-15, 9W, Output Voltage 16-29V, 81% Efficiency, Nominal Lifetime up to 50,000h, Overload Protection, Short Circuit Protection, Open Circuit Protection, Overtemperature Protection, SELV, 5 Year Warranty
Weight
0,079 kg
Manufacturer

KGP Electronics GmbH

Weight

0,079 kg

Product group

LED control gear (EC002710)

Constant luminous flux control

No

Compatible with Apple HomeKit

No

Compatible with Google Assistant

No

Compatible with Amazon Alexa

No

IFTTT support available

No

Execution

dynamic

Without dimming function

No

Housing

Plastic housing

Suitable for constant current

Yes

Suitable for constant voltage

No

Output voltage

16 – 29 V

Output current

400 – 550 mA

Suitable for DC voltage (primary side)

No

Output power

6,4 – 15,9 W

Protection class (IP)

IP20

Protection class

II

Length

122 mm

Width

41 mm

Height

23 mm

Dimming phase cut-off

Yes

Phase control dimming

Yes

Country of origin

China (CN)

Commodity code

Rectifier (85044083)

REACH Indicator

Yes

Datenblatt
CC15W400-550CGTriac.pdfkgp_reach_declaration_md05-50.pdf
Suitable for outdoor use

No

Dimming 0-10 V

No

Dimming 1-10 V

No

DALI dimming

No

Dimming DSI

No

DMX dimming

No

Dimming potentiometer (device-integrated)

No

Dimming LineSwitch

No

Dimming manufacturer-specific

No

Dimming Mains voltage modulation

No

Programmable dimming

No

RF dimming

No

Dimming Sine Wave Reduction

No

Dimming Touch and Dim

No

Dimming Zigbee

No

Dimming with push-button

No

Operation via Bluetooth

No

Kompatibel mit Casambi

No
