KGP LED Treiber Konstantstrom 220-240V, 50-60Hz, 250-700mA, dimmbar -DALI, IP20 CC30W250-700CG DALI

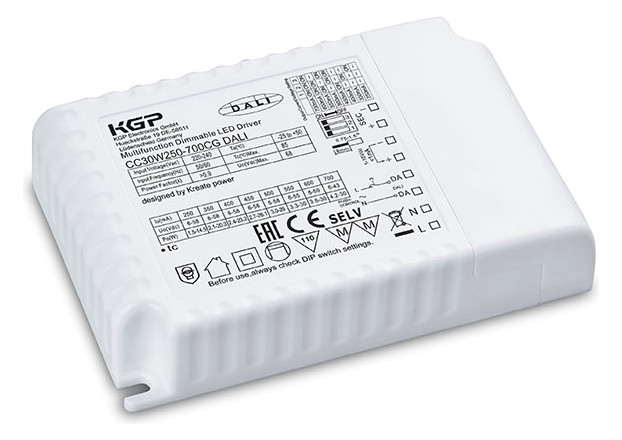

KGP LED Driver Constant Current 220-240V, 50-60Hz, 250-700mA, Dimmable -DALI, IP20 CC30W250-700CG DALI

SKU: 873-CC30W250-700CG DALI

Datasheet: Download PDF

For further information, please refer to the data sheet!

Constant Current LED Driver, Dimmable, DALI & 1-10V, 87% Efficiency, Output Current Adjustable via DIP SWITCH, Output Voltage 6-58VDC, Output Power 1, 5-30W, SELV, Overload Protection, Short Circuit Protection, Open Circuit Protection, Over Temperature Protection, 5 Years Warranty

Manufacturer

KGP Electronics GmbH

Weight

0,142 kg

Product group

LED control gear (EC002710)

Constant luminous flux control

Compatible with Apple HomeKit

Compatible with Google Assistant

Compatible with Amazon Alexa

IFTTT support available

Execution

dynamic

Without dimming function

Housing

Plastic housing

Suitable for constant current

Yes

Suitable for constant voltage

Output current

250 – 700 mA

Suitable for DC voltage (primary side)

Output power

1,500 – 30,000 W

Protection class (IP)

IP20

Protection class

Length

103 mm

Width

67,00 mm

Height

22,00 mm

Dimming 1-10 V

Yes

DALI dimming

Yes

Dimming Touch and Dim

Yes

Dimming with push-button

Yes

Country of origin

China (CN)

Commodity code

Rectifier (85044083)

REACH Indicator

Yes

Datenblatt

CC30W250-700CGDALI.pdf kgp_reach_declaration_md05.pdf
