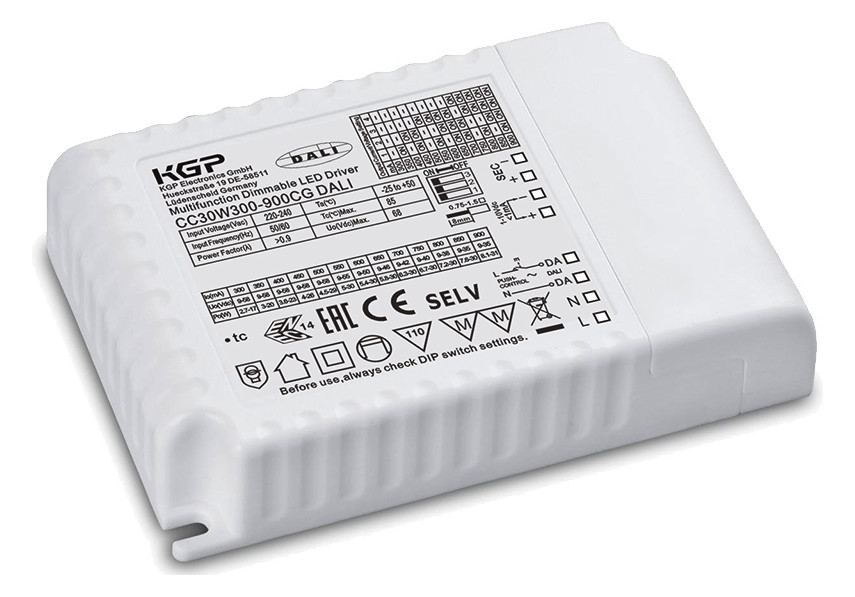

cc30w300-900cg dali.jpg

KGP LED Driver Constant Current 220-240V 30W 300-900mA, DALI,Push and 1-10V dimming, Constant Current CC30W300-900CG DALI

SKU: 873-CC30W300-900CG DALI
Datasheet: Download PDF
For further information, please refer to the data sheet!
Constant current LED driver, switchable, output current adjustable via DIP SWITCH 300mA to 900mA, output power up to 30.6W, output voltage 9-58V. Up to 86% efficiency, nominal life up to 50,000h, overload protection, short circuit protection, open-circuit protection, over-temperature protection, PUSH & DALI dimming: %-100%; 1-10V dimming:%-100%, 5 years warranty
Manufacturer

KGP Electronics GmbH

Product group

LED control gear (EC002710)

Constant luminous flux control

No

Compatible with Apple HomeKit

No

Compatible with Google Assistant

No

Compatible with Amazon Alexa

No

IFTTT support available

No

Execution

dynamic

Without dimming function

No

Housing

Plastic housing

Suitable for constant current

Yes

Suitable for constant voltage

No

Output voltage

9 – 58 V

Output current

300 – 900 mA

Suitable for DC voltage (primary side)

No

Output power

2,7 – 30,6 W

Protection class (IP)

IP20

Protection class

II

Length

103 mm

Width

67 mm

Height

22 mm

Dimming 1-10 V

Yes

DALI dimming

Yes

Dimming with push-button

Yes

Country of origin

China (CN)

Commodity code

Rectifier (85044083)

REACH Indicator

Yes

Datenblatt
CC30W300-900CGDALI.pdfkgp_reach_declaration_md05-3.pdf
Suitable for outdoor use

No

Dimming 0-10 V

No

Dimming DSI

No

DMX dimming

No

Dimming potentiometer (device-integrated)

No

Dimming LineSwitch

No

Dimming manufacturer-specific

No

Dimming Mains voltage modulation

No

Dimming phase cut-off

No

Phase control dimming

No

Programmable dimming

No

RF dimming

No

Dimming Sine Wave Reduction

No

Dimming Touch and Dim

No

Dimming Zigbee

No

Kompatibel mit Casambi

No
