KGP LED Treiber Konstantstrom 220-240Vr 40W 250-700mA, DALI,Push und 1-10V dimmung, Konstantstrom CC40W250-700CG DALI

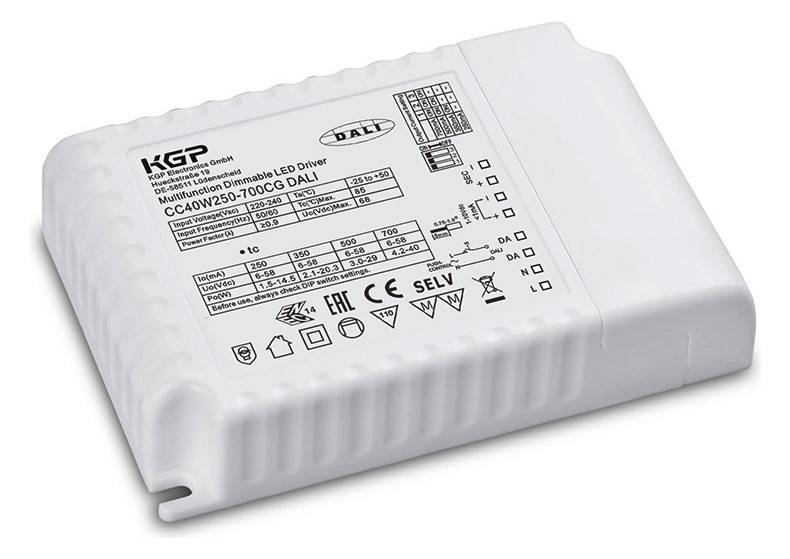

KGP LED Driver Constant Current 220-240Vr 40W 250-700mA, DALI,Push and 1-10V dimming, Constant Current CC40W250-700CG DALI

SKU: 873-CC40W250-700CG DALI

Datasheet: Download PDF

For further information, please refer to the data sheet!

Constant current LED driver, switchable, output current adjustable via DIP SWITCH 250mA to 700mA, output power up to 40W, output voltage 6-58V. Up to 87% efficiency, nominal service life up to 50,000h, overload protection, short circuit protection, open-circuit protection, over-temperature protection, PUSH & DALI dimming: %-100%; 1-10V dimming:%-100%, 5 years warranty

Manufacturer

KGP Electronics GmbH

Product group

LED control gear (EC002710)

Constant luminous flux control

Compatible with Apple HomeKit

Compatible with Google Assistant

Compatible with Amazon Alexa

IFTTT support available

Execution

dynamic

Without dimming function

Housing

Plastic housing

Suitable for constant current

Yes

Suitable for constant voltage

Output voltage

6 – 58 V

Output current

250 – 700 mA

Suitable for DC voltage (primary side)

Output power

1,500 – 40,000 W

Protection class (IP)

IP20

Protection class

Length

123 mm

Width

79,00 mm

Height

24,00 mm

Dimming 1-10 V

Yes

DALI dimming

Yes

Dimming with push-button

Yes

Country of origin

China (CN)

Commodity code

Rectifier (85044083)

REACH Indicator

Yes

Datenblatt

CC40W250-700CGDALI.pdf kgp_reach_declaration_md05.pdf
