KGP LED Treiber Konstantsrom 220-240V, 50-60Hz, 700-1050mA, IP20, Inkl. Anschlußbox CC44W700-1050CGD

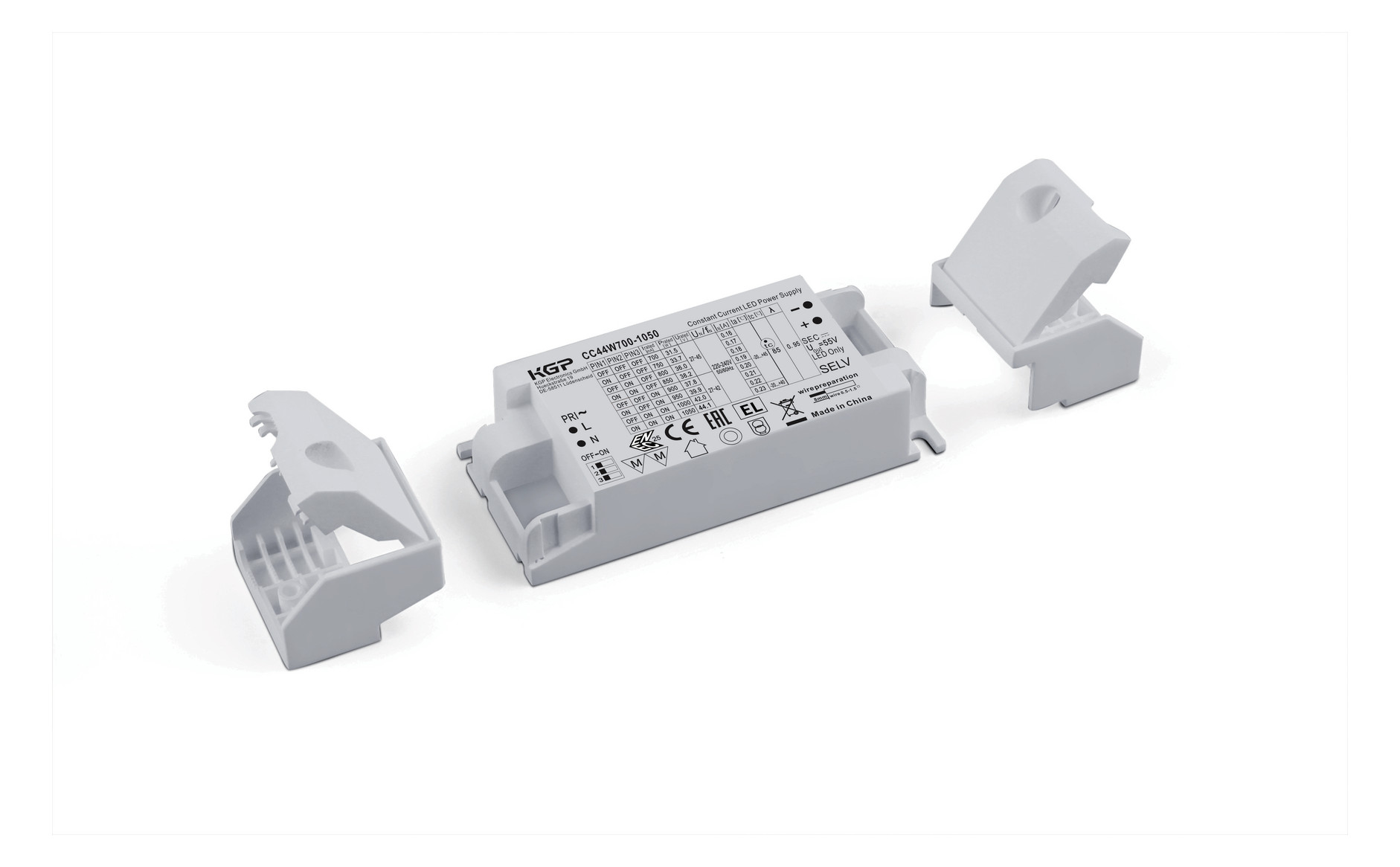

KGP LED Driver Constant Roam 220-240V, 50-60Hz, 700-1050mA, IP20, incl. Connection Box CC44W700-1050CGD

SKU: 873-CC44W700-1050CGD

Datasheet: Download PDF

For further information, please refer to the data sheet!

Constant current LED driver, preset to 950 mA, incl. connection box for through-wiring, 88% efficiency, output current adjustable via DIP-SWITCH, output current 700-1050mA, output power max. 44W, SELV, with strain relief, SK II, 5 years warranty

Weight

0,112 kg

Manufacturer

KGP Electronics GmbH

Weight

0,112 kg

Product group

LED control gear (EC002710)

Constant luminous flux control

Compatible with Apple HomeKit

Compatible with Google Assistant

Compatible with Amazon Alexa

IFTTT support available

Execution

Static

Without dimming function

Yes

Housing

Plastic housing

Suitable for constant current

Yes

Suitable for constant voltage

Output voltage

27 – 45 V

Output current

700 – 1.050 mA

Suitable for DC voltage (primary side)

Output power

19 – 44 W

Protection class (IP)

IP20

Protection class

Length

138 mm

Width

44 mm

Height

23 mm

Country of origin

China (CN)

Commodity code

Rectifier (85044083)

REACH Indicator

Yes

Datenblatt

CC44W700-1050CGD.pdf kgp_reach_declaration_md05-40.pdf

Suitable for outdoor use

Dimming 0-10 V

Dimming 1-10 V

DALI dimming

Dimming DSI

DMX dimming

Dimming potentiometer (device-integrated)

Dimming LineSwitch

Dimming manufacturer-specific

Dimming Mains voltage modulation

Dimming phase cut-off

Phase control dimming

Programmable dimming

RF dimming

Dimming Sine Wave Reduction

Dimming Touch and Dim

Dimming Zigbee

Dimming with push-button

Operation via Bluetooth

Kompatibel mit Casambi
