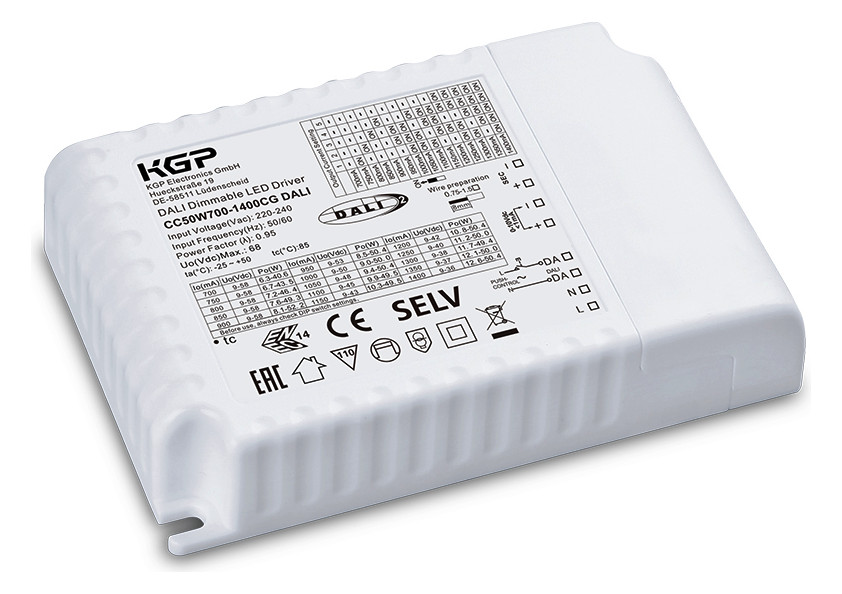

cc50w700-1400cg dali.jpg

KGP LED Driver Constant Current 220-240V 50W 700-1400mA, DALI,Push and 1-10V dimming, Constant Current CC50W700-1400CG DALI

SKU: 873-CC50W700-1400CG DALI
Datasheet: Download PDF
For further information, please refer to the data sheet!
Constant current LED driver, switchable, output current adjustable via DIP SWITCH 7000mA to 1400mA, output power up to 50W, output voltage 9-58V. Up to 86% efficiency, nominal life up to 50,000h, overload protection, short circuit protection, open-circuit protection, over-temperature protection, PUSH & DALI dimming: %-100%; 1-10V dimming:%-100%, 5 years warranty
Manufacturer

KGP Electronics GmbH

Product group

LED control gear (EC002710)

Constant luminous flux control

No

Compatible with Apple HomeKit

No

Compatible with Google Assistant

No

Compatible with Amazon Alexa

No

IFTTT support available

No

Execution

dynamic

Without dimming function

No

Housing

Plastic housing

Suitable for constant current

Yes

Suitable for constant voltage

No

Output voltage

9 – 58 V

Output current

700 – 1.400 mA

Suitable for DC voltage (primary side)

No

Output power

50 W

Protection class (IP)

IP20

Protection class

II

Length

123 mm

Width

79 mm

Height

24 mm

Dimming 1-10 V

Yes

DALI dimming

Yes

Dimming with push-button

Yes

Country of origin

China (CN)

Commodity code

Rectifier (85044083)

REACH Indicator

Yes

Datenblatt
CC50W700-1400CGDALI.pdfkgp_reach_declaration_md05.pdf
Suitable for outdoor use

No

Dimming 0-10 V

No

Dimming DSI

No

DMX dimming

No

Dimming potentiometer (device-integrated)

No

Dimming LineSwitch

No

Dimming manufacturer-specific

No

Dimming Mains voltage modulation

No

Dimming phase cut-off

No

Phase control dimming

No

Programmable dimming

No

RF dimming

No

Dimming Sine Wave Reduction

No

Dimming Touch and Dim

No

Dimming Zigbee

No

Kompatibel mit Casambi

No
