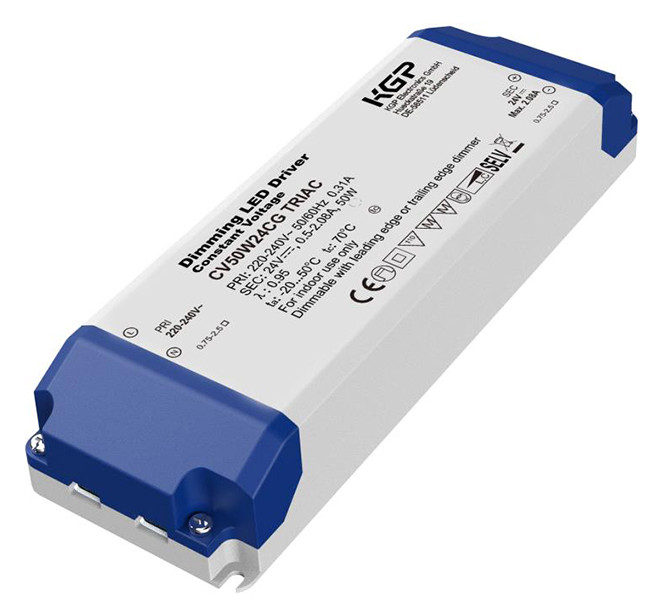

KGP LED Driver Constant Voltage 220-240V, 50-60Hz, 24V, Dimmable -triac, IP20 CV50W24CG

SKU: 873-CV50W24CG
Datasheet: Download PDF
For further information, please refer to the data sheet!
Constant Voltage LED Driver, Triac Dimming %-100%, Indoor Only, 85% Efficiency, Output Voltage 24V, Output Current 500-2080mA, Output Power Max.25W, Overload Protection, Short Circuit Protection, Open Circuit Protection, Over Temperature Protection, 5 Years Warranty.
Manufacturer

KGP Electronics GmbH

Product group

LED control gear (EC002710)

Constant luminous flux control

No

Compatible with Apple HomeKit

No

Compatible with Google Assistant

No

Compatible with Amazon Alexa

No

IFTTT support available

No

Execution

dynamic

Without dimming function

No

Housing

Plastic housing

Suitable for constant current

No

Suitable for constant voltage

No

Output voltage

24 V

Output current

500 – 2.080 mA

Suitable for DC voltage (primary side)

No

Output power

50 W

Protection class (IP)

IP20

Protection class

II

Length

184 mm

Width

61 mm

Height

32 mm

Dimming phase cut-off

Yes

Dimming Touch and Dim

Yes

Country of origin

China (CN)

Commodity code

Rectifier (85044083)

REACH Indicator

Yes

Datenblatt
CV50W24CG.pdfkgp_reach_declaration_md05-4.pdf
Suitable for outdoor use

No

Dimming 0-10 V

No

Dimming 1-10 V

No

DALI dimming

No

Dimming DSI

No

DMX dimming

No

Dimming potentiometer (device-integrated)

No

Dimming LineSwitch

No

Dimming manufacturer-specific

No

Dimming Mains voltage modulation

No

Phase control dimming

No

Programmable dimming

No

RF dimming

No

Dimming Sine Wave Reduction

No

Dimming Zigbee

No

Dimming with push-button

No

Kompatibel mit Casambi

No
