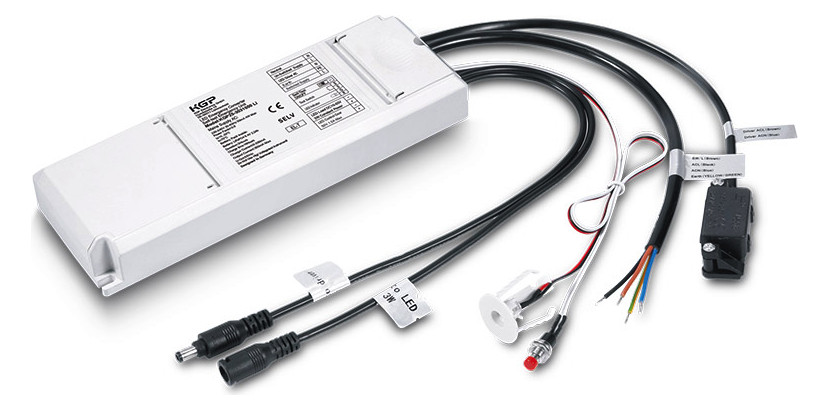

KGP Emergency Lighting Control Module Constant Current 220-240V, 50/60Hz, 10-50V, 3h EC25-3031050LI

SKU: 873-EC25-3031050LI
Datasheet: Download PDF
For further information, please refer to the data sheet!
Emergency light LED driver with self-test function, self-test according to IEC 62034, 3h rated operating time, LED modules with a forward voltage of 10-50 V, two-color LED for status indication, plug connection for luminaire installation, nominal service life up to 50,000h, 5 years warranty
Weight
0,66 kg
Manufacturer

KGP Electronics GmbH

Weight

0,66 kg

Product group

LED control gear (EC002710)

Constant luminous flux control

No

Compatible with Apple HomeKit

No

Compatible with Google Assistant

No

Compatible with Amazon Alexa

No

IFTTT support available

No

Execution

dynamic

Without dimming function

Yes

Housing

Plastic housing

Suitable for constant current

Yes

Suitable for constant voltage

No

Suitable for DC voltage (primary side)

No

Output power

3 W

Protection class (IP)

IP20

Protection class

II

Length

179 mm

Width

30 mm

Height

21 mm

Country of origin

China (CN)

Commodity code

Rectifier (85044083)

REACH Indicator

Yes

Datenblatt
EC25-3031050LI.pdfkgp_reach_declaration_md05-29.pdf
Suitable for outdoor use

No

Dimming 0-10 V

No

Dimming 1-10 V

No

DALI dimming

No

Dimming DSI

No

DMX dimming

No

Dimming potentiometer (device-integrated)

No

Dimming LineSwitch

No

Dimming manufacturer-specific

No

Dimming Mains voltage modulation

No

Dimming phase cut-off

No

Phase control dimming

No

Programmable dimming

No

RF dimming

No

Dimming Sine Wave Reduction

No

Dimming Touch and Dim

No

Dimming Zigbee

No

Dimming with push-button

No

Operation via Bluetooth

No

Kompatibel mit Casambi

No
