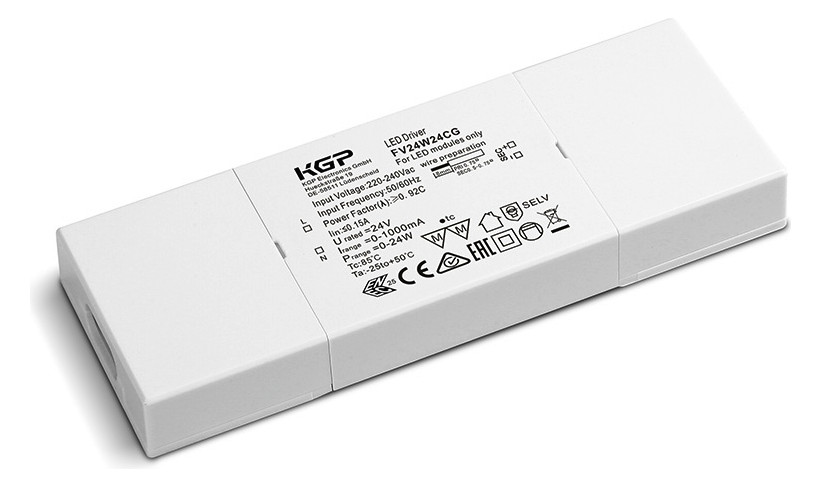

KGP LED Driver Constant Voltage 220-240V, 50-60Hz, 24V, 0-24W, Switchable, IP20 FV24W24CG

SKU: 873-FV24W24CG
Datasheet: Download PDF
For further information, please refer to the data sheet!
Constant voltage LED driver, switchable, 24V, 0-24W, up to 91% efficiency, nominal lifetime up to 50,000h, 5 years warranty
Weight
0,123 kg
Manufacturer

KGP Electronics GmbH

Weight

0,123 kg

Product group

LED control gear (EC002710)

Constant luminous flux control

No

Compatible with Apple HomeKit

No

Compatible with Google Assistant

No

Compatible with Amazon Alexa

No

IFTTT support available

No

Execution

Static

Without dimming function

No

Housing

Plastic housing

Suitable for constant current

No

Suitable for constant voltage

Yes

Output current

0 – 1.000 mA

Suitable for DC voltage (primary side)

No

Output power

0 – 24 W

Protection class (IP)

IP20

Protection class

II

Length

137 mm

Width

50 mm

Height

15,5 mm

Country of origin

China (CN)

Commodity code

Rectifier (85044083)

REACH Indicator

Yes

Datenblatt
FV24W24CG.pdfkgp_reach_declaration_md05-71.pdf
Suitable for outdoor use

No

Dimming 0-10 V

No

Dimming 1-10 V

No

DALI dimming

No

Dimming DSI

No

DMX dimming

No

Dimming potentiometer (device-integrated)

No

Dimming LineSwitch

No

Dimming manufacturer-specific

No

Dimming Mains voltage modulation

No

Dimming phase cut-off

No

Phase control dimming

No

Programmable dimming

No

RF dimming

No

Dimming Sine Wave Reduction

No

Dimming Touch and Dim

No

Dimming Zigbee

No

Dimming with push-button

No

Operation via Bluetooth

No

Kompatibel mit Casambi

No
