KGP LED Treiber Konstantspannung 220-240V, 50-60Hz, 24V, 0-90W, schaltbar, IP20 FV90W24CG

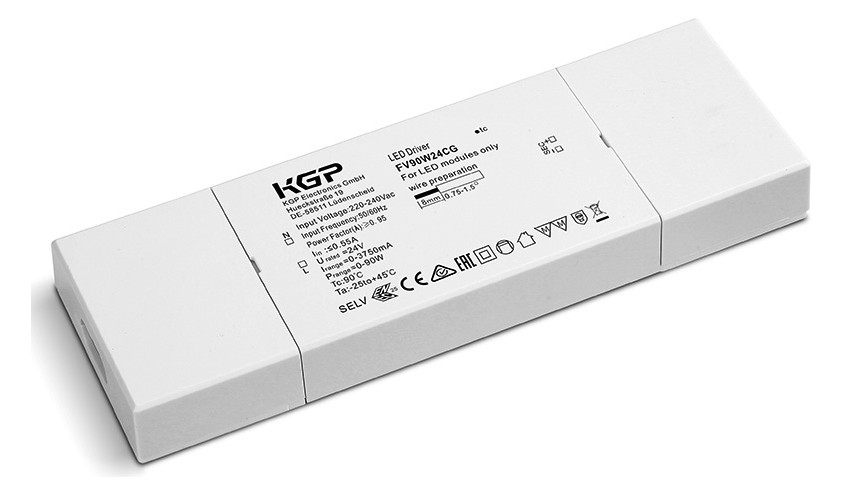

KGP LED Driver Constant Voltage 220-240V, 50-60Hz, 24V, 0-90W, Switchable, IP20 FV90W24CG

SKU: 873-FV90W24CG

Datasheet: Download PDF

For further information, please refer to the data sheet!

Constant voltage LED driver, switchable, 24V, 0-90W, up to 88% efficiency, nominal lifespan up to 50,000h, 5 years warranty

Manufacturer

KGP Electronics GmbH

Weight

0,275 kg

Product group

LED control gear (EC002710)

Constant luminous flux control

Compatible with Apple HomeKit

Compatible with Google Assistant

Compatible with Amazon Alexa

IFTTT support available

Execution

Static

Without dimming function

Yes

Housing

Plastic housing

Suitable for constant current

Suitable for constant voltage

Yes

Output voltage

24 V

Output current

0 – 3.750 mA

Suitable for DC voltage (primary side)

Output power

0,000 – 90,000 W

Protection class (IP)

IP20

Protection class

Length

190 mm

Width

65,00 mm

Height

22,00 mm

Country of origin

China (CN)

Commodity code

Rectifier (85044083)

REACH Indicator

Yes

Datenblatt

FV90W24CG.pdf kgp_reach_declaration_md05.pdf
