Highbay H40 - Industrial luminaires black 80/100/150W 90° 4000K/5000K CRI80 AA22735.02.63

SKU: 886-AA22735.02.63
Datasheet: Download PDF
For further information, please refer to the data sheet!

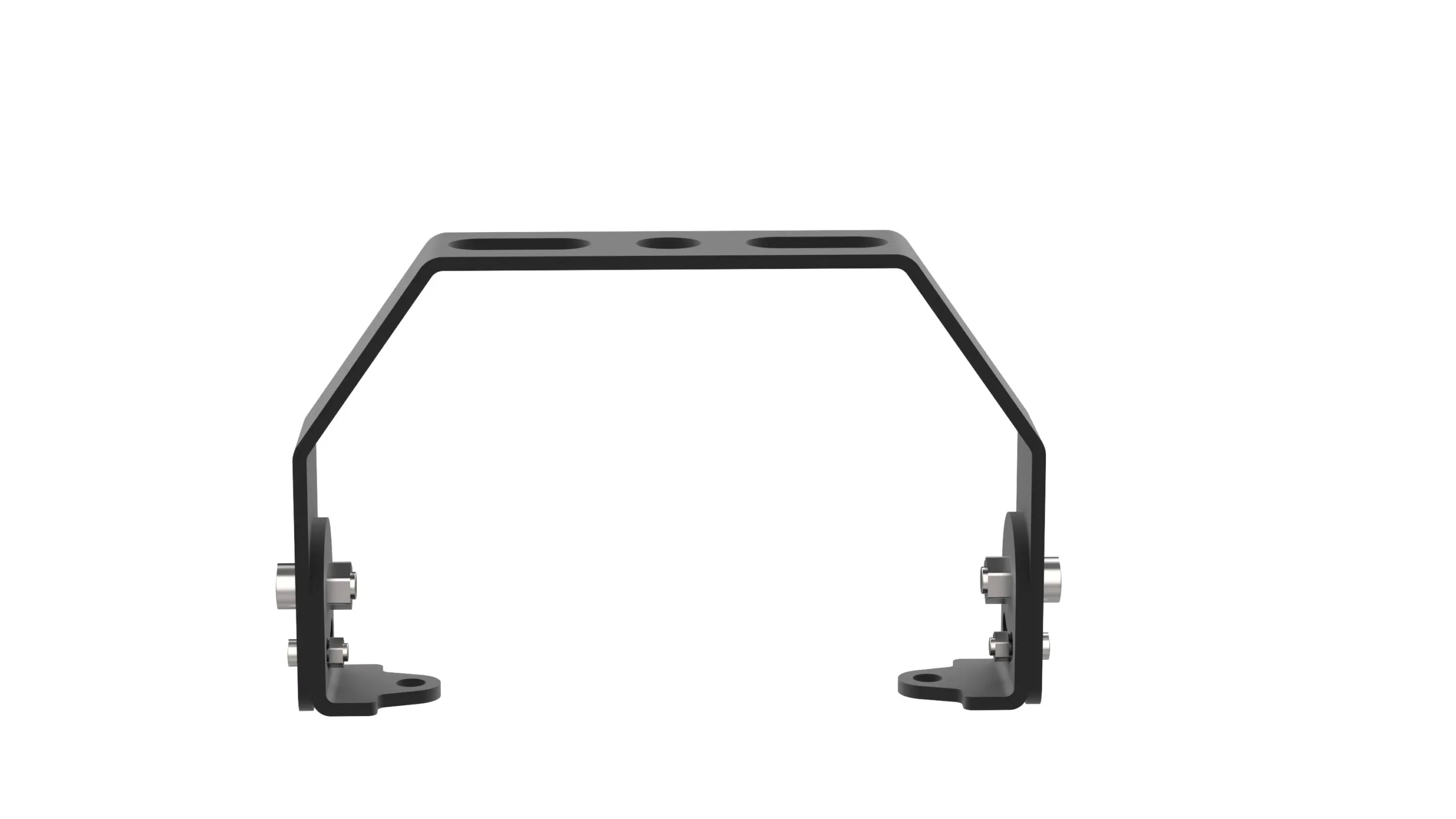

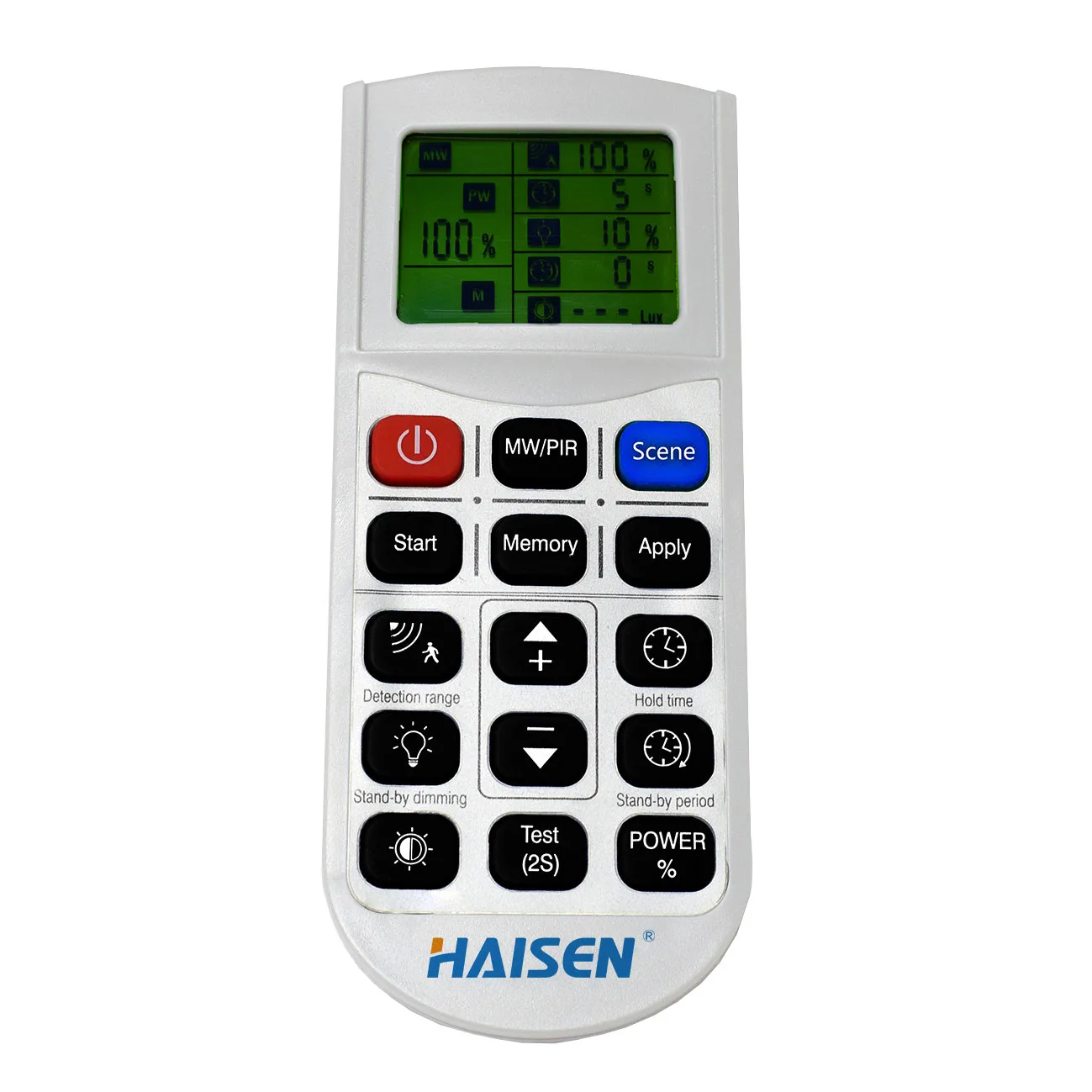

High-performance LED high bay pendant luminaire for demanding industrial applications. High flexibility due to adjustable power and color temperature. Ideal for illumination in factories, warehouses and cold stores. High-pressure die-cast aluminum housing with excellent thermal management. Installation height 3-15m. Suitable for ambient temperature ta -30°C to +45°C. Luminous flux decrease after more than 90,000h L80/B10 at ta 25C. Dimmable via sensor and remote control. Mounting accessories not included. 5-year warranty. Up to 160lm/W. Adjustable power. Adjustable CCT 4000K/5000K. Up to 150lm/W at 4000K.
Family

Highbay H40

Weight

2,7 kg

Product group

High bay reflector light (EC001716)

Replaceable operating device

Yes

Luminous flux maintenance with average service life 50,000 h at 25 °C ambient temperature

80 %

Failure rate with average service life of 50,000 h at 25 °C ambient temperature (tq)

10 %

Constant luminous flux control

No

Adjustable color temperature

Steps

Adjustable beam angle

No

Adjustable luminous flux

Steps

Max. Number of lights Circuit breaker C16

18

Mounting type

Pendulum

Light source

LED replaceable

Suitable for number of light sources

1

Suitable for secondary lamps

No

Version

Without

Material of the housing

Aluminum

Housing color

black

Voltage type

AC

Nominal voltage

100 – 240 V

Operating device

LED control gear, current-controlled

Without dimming function

No

Light distributor

Diffuser lens/optics/panel

Light distribution

symmetrical

Reflector

Without

Reflector material

other

Beam angle

Extremely wide beam >80°

Color consistency (McAdam ellipse)

SDCM6

Protection class (IP)

IP65

Impact resistance

IK08

Ball-proof

No

Protection class

I

Rated ambient temperature according to IEC 62722-2-1

-30 – 45 °C

Glow wire test according to IEC 60695-2-11

Without

Max. System performance

150,00 W

Light color

white

Color temperature

4.000,00 – 5.000,00 K

Color rendering index CRI

80-89

Height/depth

157,00 mm

Outer diameter

306 mm

Type of wiring

Conclusion

Number of poles

3

Connection type

other

With protective cover

No

With illuminant

Yes

With control gear

Yes

Country of origin

China (CN)

Statistische Warennummer

Lüster und andere elektrische Decken- und Wandleuchten, mit LED-Lichtquelle, aus anderen Stoffen als Kunststoff, keramischen Stoffen oder Glas (94051190)

REACH Indicator

Yes
